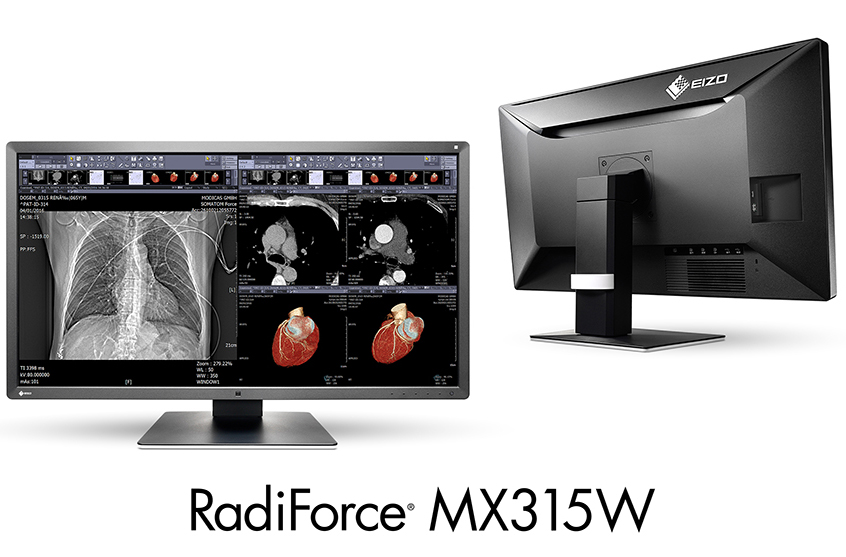

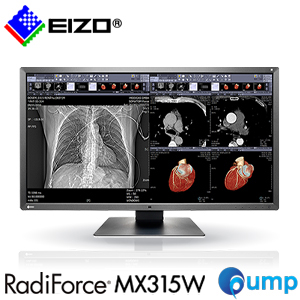

EIZO RadiForce MX315W Clinical Review Monitor

EIZO RadiForce MX315W Clinical Review Monotors Monitor

** สอบถามราคาสินค้าผ่านทาง Line หรือ Facebook ก่อนสั่งซื้อทุกครั้ง **

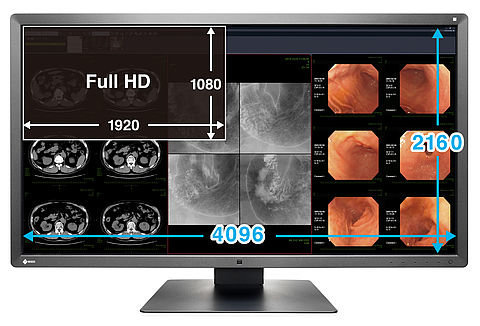

The MX315W is a 31.1-inch medical monitor with an 8 megapixel resolution ― the highest in the RadiForce MX-Series of clinical review monitors. It has DICOM Part 14 calibration support, and can display a variety of medical images at the same time including CT, MRI, and ultrasound, making it incredibly cost effective

Excellent image quality for the finest details

Thanks to the high 8 Megapixels (colour) resolution, a strong contrast ratio of 1300:1 and stable brightness of up to 450 cd/m2, the monitor offer excellent image quality. Even the differences between the finest details are shown – regardless of your viewing angle. This is a great advantage if multiple physicians are looking at the screen.

Consistently secure image quality

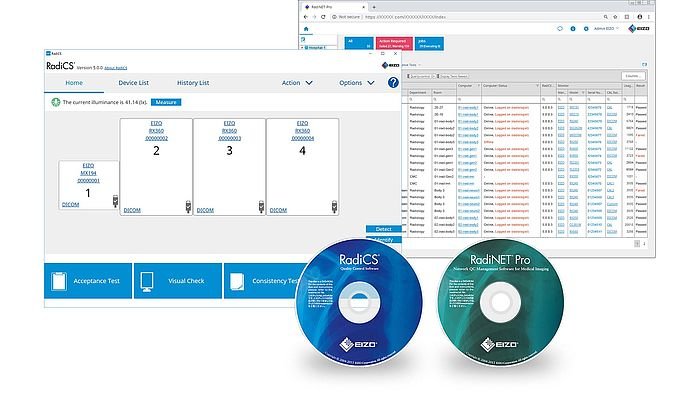

The optional EIZO RadiCS software to secure image quality enables extensive maintenance and testing of monitors and includes calibration, acceptance and constancy testing, and the archiving of all areas. If you are working on multiple stations, the use of the RadiNET Pro is recommended. This can be used to centrally control the calibration of all monitors, including data history. This saves you a significant amount of time and ensures consistently high image quality across the entire setup. The basic version RadiCS LE is already included with the RadiForce GX, RX, and MX/MS models.

One billion colour tones thanks to 13 bit LUT

Colour rendering is controlled by a 13 bit look-up table (LUT), up to 10 bits of which are available in the DisplayPort connection. This produces a resolution with a maximum of 1 billion colour tones. The rendering characteristic and fine structures required for diagnostics can therefore be precisely identified.

                                                Without 12 bit LUT                                                                                   With 12 bit LUT

Blur reduction

LCD panels with a high brightness level tend to have more blurry image rendering thanks to over-framing than would be possible in comparison with an acquired exposure. Therefore, EIZO offers blur reduction anchored in monitor hardware. It retrieves details lost in the contours on the screen, meaning that the image is rendered as clearly as possible.

Uniform brightness and high color purity

The monitor shines thanks to its high color purity and uniform illumination. This is down to the Digital Uniformity Equalizer (DUE), which corrects imbalances automatically, pixel by pixel. Gray and color tones of radiological and other medical images are correctly rendered over the entire display. This is vital for diagnostics.

                                                          Without DUE                                                                           With DUE

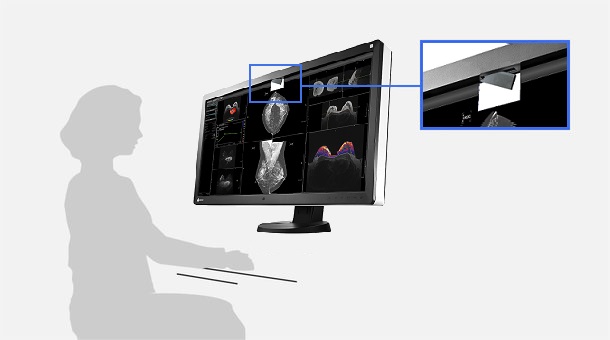

Balanced image quality thanks to an integrated front sensor

The precise calibration of white point and tone value characteristic curve is provided by an integrated front sensor (IFS). This measures the brightness and grayscales and calibrates the monitor autonomously according to the DICOM standard. The sensor works automatically, without restricting the field of vision of the monitor. You can save the costs, time, and effort of maintenance and rely on a consistently balanced image quality.

Evolve your image reading: the Work-and-Flow technology

Radiologists face an increasing amount of information on their screens, as modalities become increasingly digitalized. But imaging procedures now no longer need to be so complex, thanks to the unique Work-and-Flow technology from EIZO, featuring new functions developed specially to meet the requirements of radiologists. The RadiForce MX315W and RadiCS-LE software solution enable you to benefit from the Work-and-Flow functions.

Point-and-Focus: all eyes on the analysis

The Point-and-Focus function allows you to select and focus on relevant image areas quickly using your mouse or keyboard. By adjusting the brightness and greyscale, the interesting parts of an image are highlighted by dimming the surrounding areas.

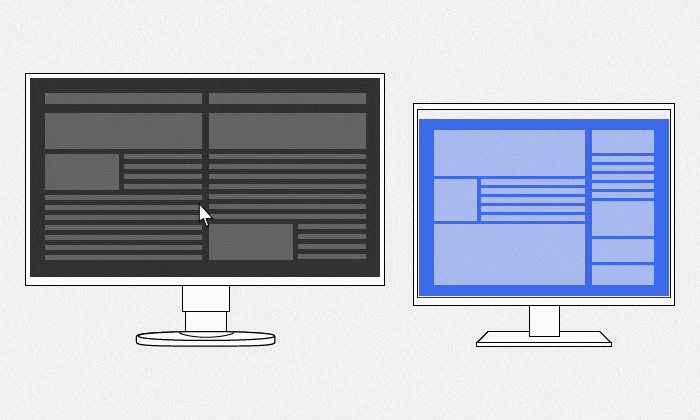

Hide-and-Seek: fast retrieval of information

Hide-and-Seek adds the benefit of making it possible to access reports, patient files and other information on the display quickly and efficiently without needing an additional monitor. When you move your cursor towards or away from the edge of the screen, a PinP window hides and displays information.

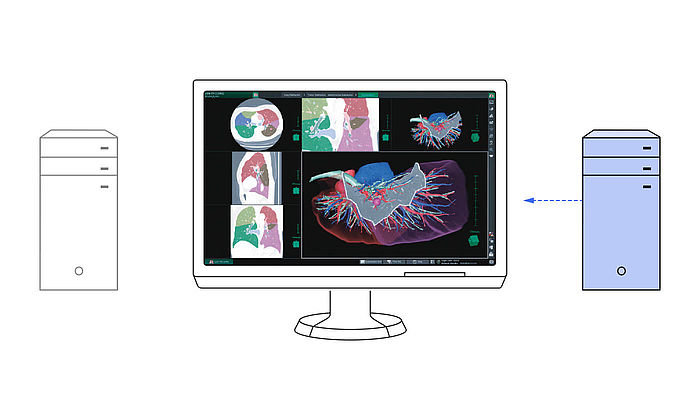

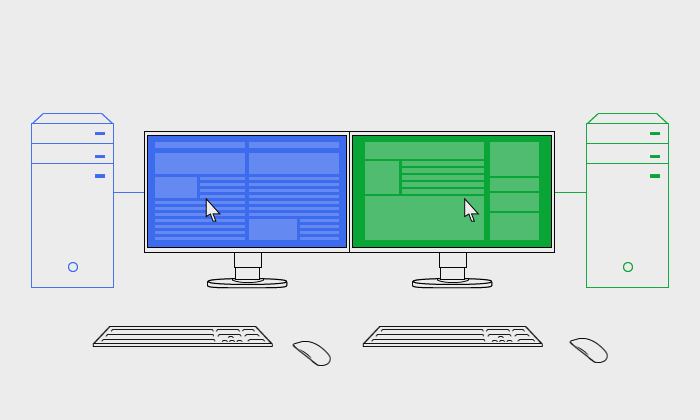

Switch-and-Go: just one keyboard and mouse for two systems

Switch-and-Go makes it possible to work using just one keyboard and mouse at diagnostic imaging stations that make use of two computers. You can switch between the two systems simply by moving your cursor from one screen to the other. This ensures greater work efficiency and allows you to maintain a clear overview of your workstation.

Secure image quality thanks to AAPM/Euref/DIN compliance

The display properties, in particular brightness and contrast, are suited to the creation of image rendering systems compliant with DIN 6868-157. The DICOM GSDF characteristic is already precisely configured in the factory. This means that grayscales are consistent, which is vital for diagnostics.

The monitor meets the strictest medical, safety, and EMC emission standards. EIZO’s QC software RadiCS enables you to perform brightness, grayscale and uniformity checks that comply with AAPM TG18, DIN 6868-157, and other QC standards.

FDA clearance

The monitor holds the FDA-510(k)- clearance for general radiography, but it does not support display of mammography images for diagnosis.

Extended durations of use thanks to automatic shut down

The monitor has an automatic shut down option for the backlight (backlight saver). This extends the duration of use. Similar to a screen saver, the LEDs turn off when the screen is not being used.

Multi-monitor solutions without problems

Thanks to the signal input and output, you can link several RadiForce monitors through their DisplayPort interface. This means that you can realize multi-monitor solutions with the greatest of ease – without laborious and excessive cabling.

One monitor, many ports

It doesn't get easier than this: You can connect most of your devices, such as PC, laptop or cameras directly to the monitor because the monitor has a number of different ports. That makes your daily work easier.

Connections for two computers

DisplayPort and DVI-D input enable the connection of two image signals. You can therefore connect two computers simultaneously. You can switch between them automatically or manually, if desired.

Constant brightness during operation

A sensor for the backlight permanently determines the luminance of the monitor. The benefit: The defined and calibrated values are rendered exactly just seconds after the monitor is turned on and remain constant during the entire period of use. The sensor is invisibly integrated in the monitor.

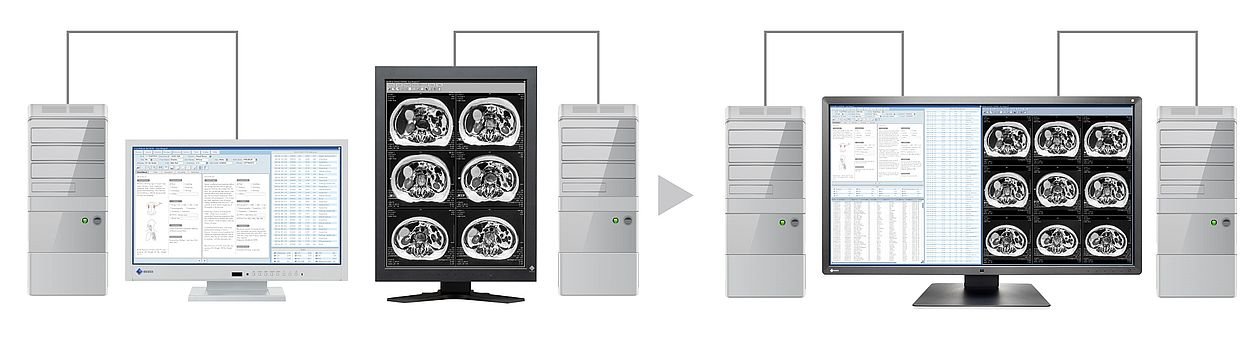

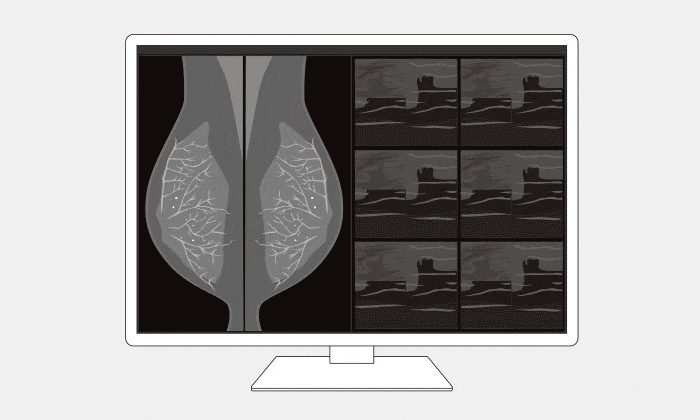

Two-screen solution with one monitor

With the Picture-by-Picture function, two displays from separate input signals can be displayed simultaneously on a single monitor. A widescreen without annoying edges enables the simple and flexible use.

Eye-friendly Comfort Light

EIZO offers a brand-new, easy-to-operate comfort light for radiologists who work in dark diagnosis rooms. The soft illuminance in the background of the screen reduces the strain on the eyes that frequently occurs due to constant light-dark changes between bright screens and objects in a dark environment.

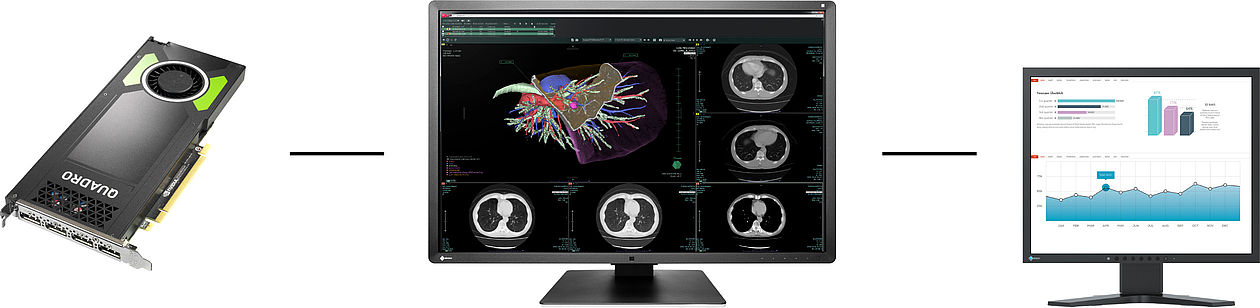

For precise diagnoses: EIZO MED-XN72 graphics card

The EIZO MED-XN72 graphics card supports the properties, functions, and settings of the RadiForce MX315W optimally. It enables precise diagnostics and can control several monitors simultaneously. EIZO offers technical support and a warranty service for all graphics cards. Therefore, we recommend using EIZO graphics cards.

*** หมายเหตุ

-  สินค้ารับประกัน 5 ปี
-  การจัดส่งสินค้า มีการ packing สินค้าให้อย่างดี พร้อมทั้งส่งแบบ EMS และ ขนส่งเอกชน
-  ในกรณีที่ลูกค้าได้รับสินค้าไม่ตรงตามรุ่นที่สั่งซื้อหรือสินค้าชำรุดจากการผลิต ให้ติดต่อเจ้าหน้าที่ Gump ภายใน 7 วัน
