EIZO RadiForce RX660 Diagnostic Medical Monitor

EIZO RadiForce RX660 Diagnostic Medical Monitor

** สอบถามราคาสินค้าผ่านทาง Line หรือ Facebook ก่อนสั่งซื้อทุกครั้ง **

A 6 megapixel monitor ideal for viewing a variety of medical images at the same time including CR, DR, CT, MRI, and ultrasound. Featuring a new design and unique EIZO technology, this monitor offers precise medical image viewing as well as ease-of-use.

Perfectly designed for diagnostic use

Narrow black frontal bezels make this device ideal for use in dark environments. They make it easy to visually concentrate on the display. Meanwhile, a white bezel at the side of the monitor creates a fresh, clean look.

Excellent image quality for the finest details

Thanks to the high 6 Megapixels (color) resolution, a strong contrast ratio of 1500:1 and stable brightness of up to 1000 cd/m2, the monitor offers excellent image quality. Even the differences between the finest details are shown – regardless of your viewing angle. This is a great advantage if multiple physicians are looking at the screen.

Work-and-Flow, Innovations to Help You View Your Images

Radiologists face an increasing amount of information on their screens, as modalities become increasingly digitalized. But imaging procedures now no longer need to be so complex, thanks to the unique Work-and-Flow technology from EIZO, featuring new functions developed specially to meet the requirements of radiologists. The RadiForce RX660 and RadiCS-LE software solution enable you to benefit from the Work-and-Flow functions.

Consistently secure image quality

The optional EIZO RadiCS software to secure image quality enables extensive maintenance and testing of monitors and includes calibration, acceptance and constancy testing, and the archiving of all areas. If you are working on multiple stations, the use of the RadiNET Pro is recommended. This can be used to centrally control the calibration of all monitors, including data history. This saves you a significant amount of time and ensures consistently high image quality across the entire setup. The basic version RadiCS LE is already included with the RadiForce GX, RX, and MX/MS models.

One billion color tones thanks to 12 bit LUT

Color rendering is controlled by a 12 bit look-up table (LUT), up to 10 bits of which are available in the DisplayPort connection. This produces a resolution with a maximum of 1 billion color tones. The rendering characteristic and fine structures required for diagnostics can therefore be precisely identified.

                                                Without 12 bit LUT                                                                                   With 12 bit LUT

Balanced image quality thanks to an integrated front sensor

The precise calibration of white point and tone value characteristic curve is provided by an integrated front sensor (IFS). This measures the brightness and grayscales and calibrates the monitor autonomously according to the DICOM standard. The sensor works automatically, without restricting the field of vision of the monitor. You can save the costs, time, and effort of maintenance and rely on a consistently balanced image quality.

                                                             Without IFS                                                                         With IFS

Secure image quality thanks to AAPM/Euref/DIN compliance

The display properties, in particular brightness and contrast, are suited to the creation of image rendering systems compliant with DIN 6868-157. The DICOM GSDF characteristic is already precisely configured in the factory. This means that grayscales are consistent, which is vital for diagnostics.

The monitor meets the strictest medical, safety, and EMC emission standards. EIZO’s QC software RadiCS enables you to perform brightness, grayscale and uniformity checks that comply with AAPM TG18, DIN 6868-157, and other QC standards.

Blur reduction

LCD panels with a high brightness level tend to have more blurry image rendering thanks to over-framing than would be possible in comparison with an acquired exposure. Therefore, EIZO offers blur reduction anchored in monitor hardware. It retrieves details lost in the contours on the screen, meaning that the image is rendered as clearly as possible.

Uniform brightness and high color purity

The monitor shines thanks to its high color purity and uniform illumination. This is down to the Digital Uniformity Equalizer (DUE), which corrects imbalances automatically, pixel by pixel. Gray and color tones of radiological and other medical images are correctly rendered over the entire display. This is vital for diagnostics.

                                                          Without DUE                                                                           With DUE

Constant brightness during operation

A sensor for the backlight permanently determines the luminance of the monitor. The benefit: The defined and calibrated values are rendered exactly just seconds after the monitor is turned on and remain constant during the entire period of use. The sensor is invisibly integrated in the monitor.

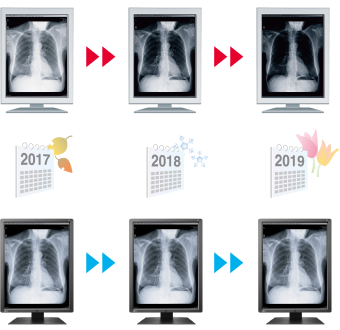

Reliable brightness

EIZO is convinced of the quality of its products. The warranty for the monitors, therefore, also covers the brightness stability.

Ambient light sensor supports the constancy test

The sensor integrated in the monitor is used to measure the ambient light and can be used for constancy tests. The prevalent illumination can be determined by the ambient light sensor with the optional RadiCS software.

Optimized workflows

The multi-modality RX660 monitor can display 6 Megapixels (color) of image data, without the annoying frame, which is unavoidable in setups with multiple monitors. This multi-modality solution provides plenty of space to display all of the imaging applications required and thereby improves the workflows in radiology, as well as increasing the overall work efficiency.

Image comparison without the annoying frame

Thanks to the DVI-D and DisplayPort inputs, you can use the monitor as a 6 megapixel single screen or 3 megapixel dual-screen solution. This means that you can display multiple images from two computers or graphics cards on the screen simultaneously – without the annoying frame you get with two separate monitors. The images are shown side-by-side, picture-by-picture. The arrangement of the images can be freely defined.

Two-screen solution with one monitor

With the Picture-by-Picture function, two displays from separate input signals can be displayed simultaneously on a single monitor. A widescreen without annoying edges enables the simple and flexible use.

Multi-monitor solutions without problems

Thanks to the signal input and output, you can link several RadiForce monitors through their DisplayPort interface. This means that you can realize multi-monitor solutions with the greatest of ease – without laborious and

One monitor, many ports

It doesn't get easier than this: You can connect most of your devices, such as PC, laptop or cameras directly to the monitor because the monitor has a number of different ports. That makes your daily work easier.

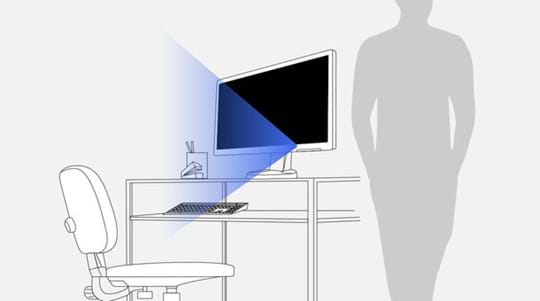

Presence sensor: Save electricity when you are not in front of the monitor

Thanks to the presence sensor, you can save electricity and help protect the environment. The sensor registers whether someone is sitting in front of the screen or not. As soon as the person leaves the workstation, the monitor turns off automatically. When the person comes back, it turns back on – fully automatically, without touching the mouse or keyboard. It is always ready for use without a waiting period.

Extended durations of use thanks to automatic shut down

The monitor has an automatic shut down option for the backlight (backlight saver). This extends the duration of use. Similar to a screen saver, the LEDs turn off when the screen is not being used.

The backlight saver is part of the RadiCS software.

For precise diagnoses: EIZO MED-X70 graphics card

The EIZO MED-X70 graphics card supports the properties, functions, and settings of the RadiForce RX660 optimally. It enables precise diagnostics and can control several monitors simultaneously. EIZO offers technical support and a warranty service for all graphics cards. Therefore, we recommend using EIZO graphics cards.

Eye-friendly Comfort Light

EIZO offers a brand-new, easy-to-operate comfort light for radiologists who work in dark diagnosis rooms. The soft illuminance in the background of the screen reduces the strain on the eyes that frequently occurs due to constant light-dark changes between bright screens and objects in a dark environment.

*** หมายเหตุ

-  สินค้ารับประกัน 5 ปี
-  การจัดส่งสินค้า มีการ packing สินค้าให้อย่างดี พร้อมทั้งส่งแบบ EMS และ ขนส่งเอกชน
-  ในกรณีที่ลูกค้าได้รับสินค้าไม่ตรงตามรุ่นที่สั่งซื้อหรือสินค้าชำรุดจากการผลิต ให้ติดต่อเจ้าหน้าที่ Gump ภายใน 7 วัน
